OUR CNC DEPARTMENT
As part of our continued investment in advanced manufacturing, Collingwood Engineering has expanded its CNC department with some new high-performance machinery, increasing both our production capacity and technical versatility. The edition of these machines enhances our ability to produce complex, tight-tolerance components efficiently, whether it's one-off parts for an emergency repair or a consistent production run.

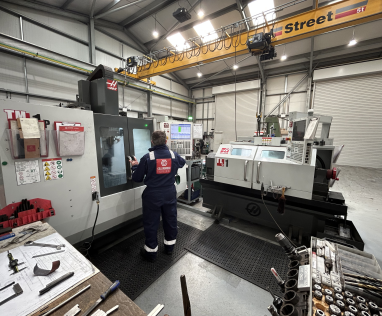

Following a carefully planned upgrade, our CNC facility is now fully operational and features :
| Haas TM-1P TOOLROOM MILL | Haas TL-1 CNC TOOLROOM LATHE | XYZ Pro TURN 355 LATHE |
| Travel: 762 X 305 X 406 mm ( XYZ) | Max swing over bed: 406 mm | Swing over bed: 360 mm |
| Spindle: 6,000 rpm, 7.5 hp | Max turning dia: 406 mm | Swing in Gap: 515 mm |
| Tool change: 10-station automatic | Max turning length: 762 mm | Distance between centres: 1000mm |
| Table size: 914 x 267 mm | Distance between centers: 864 mm | Spindle bore: 52 mm |
| Positioning accuracy; +/- 0.005 mm | Spindle bore: 54mm | Cross slide travel: 200 mm |
| Repeatability: +/- 0.0025 mm | Spindle speed 0-2000 rpm | Control system: ProtoTRAK SLX |
| Spindle power:7.5 kW | Positioning Accuracy: +/- 0.005mm | Spindle speed: 50 - 4000 rpm |
| Tool taper: CAT40 | Repeatability: +/- 0.0025mm | Spindle motor power:5.75kW |
